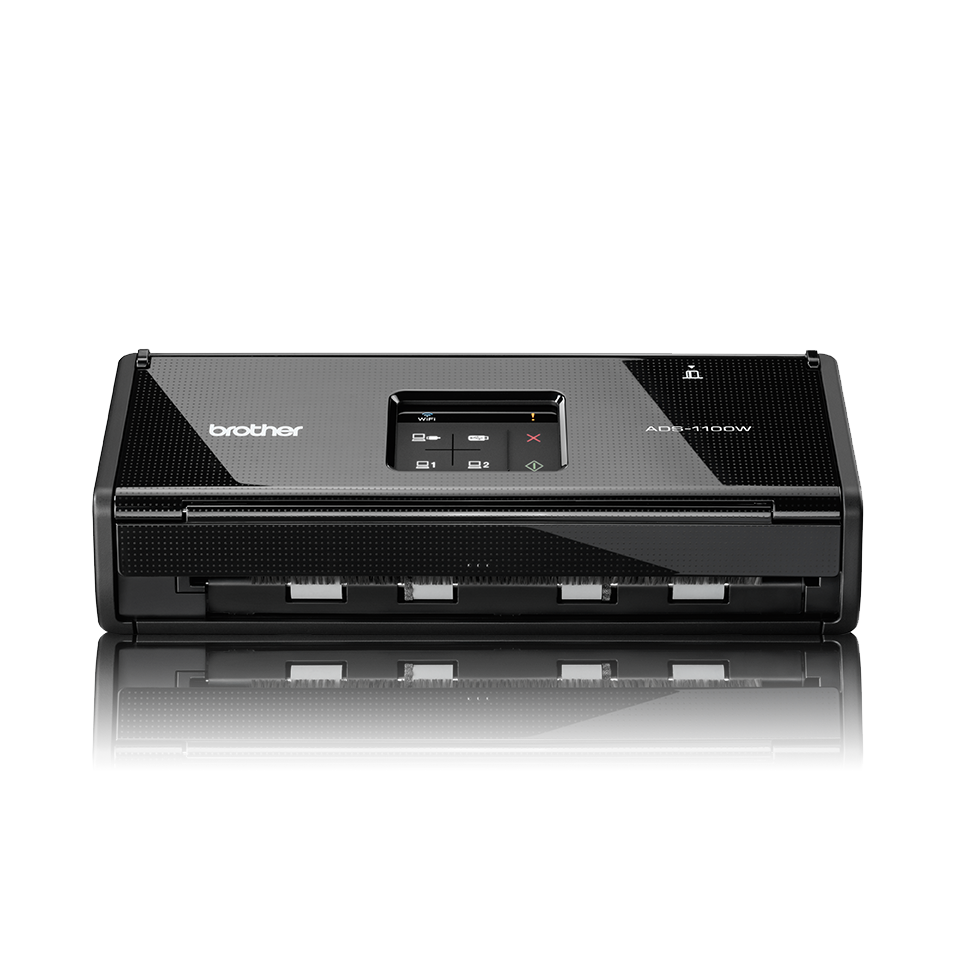

ADS-1100W Scanner compatto wireless

Scanner compatto wireless con fronte/retro automatico e ADF da 20 fogli



Sensore alimentazione multipla
RAM 128 MB
Tipo utilizzo Desktop


Interfaccia USB High Speed USB 2.0
Interfaccia di rete wireless Yes

Dimensioni e pesi

Con cartone 380 W x 170 D x 207 H mm
Con cartone 2500 g
Senza cartone 285 W x 103 D x 84 H mm
Peso 1500 g

Consumo di energia

Funzionamento 14 watt
Modalità Pronta 4 watt
Modalità Riposo 1.5 watt
Off 0.25 watt


Umidità di funzionamento 20 - 80%
Temperatura di funzionamento 5 - 35°C

Informazioni ambientali

Energy Star environmental accreditation

Nella confezione

Adattatore CA
Cavo di alimentazione
Guida di sicurezza prodotto
Cavo USB
Guida dell'utente
Guida di installazione rapida
Disco software Driver per Mac e Windows

Specifiche supporto di stampa

Tipi e dimensioni Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card
Pesi 52 - 110 gsm (multiple sheets)
Dimensioni supporti ADF Paper (multiple sheets): 51-215.9x70-297mm, Paper (single sheet): 51-215.9x70x863mm, Plastic card: 51-55x70-95mm, Plastic card Thickness: 0.4-0.76mm


Rete wireless Built‐in 802.11b/g/n wireless network
Sicurezza della rete wireless APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (HTTPS, SMTP), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES).
Supporto configurazione wireless
IPv4 Si
Protocolli di rete Si


Scansione fronte/retro
ADF 20
Scansione su email, Image, OCR, File, USB
Scala di grigi 256 levels
Risoluzione di scansione interpolata 1200 x 1200 dpi
Rilevamento alimentazione multipla
Sensore carta
Compatibilità SANE Yes
Risoluzione di scansione dall'ADF 600 x 600
Compatibilità TWAIN Windows 7, Windows 8, Windows Vista, Windows XP
Compatibilità WIA Yes
Velocità scansione A4 a colori 16 ppm
Compatibilità ICA MAC
Compatibilità ISIS Windows

Materiali di consumo e accessori

Adattatore CA Si


Garanzia 12 mesi con sostituzione del prodotto presso il cliente
Mostra di più +
Mostra meno -


un uomo e una donna sedevano alla scrivania su un computer portatile


Scopri qui le risposte alle domande più frequenti e la risoluzione dei problemi

Vai alla sezione FAQ


ADS1100W valutazione 3.4 di 5 di 9.
Rated 4 di 5 di da Uso doméstico y pequeña empresa perfecto Yo lo compré hace un par de años y soluciona las necesidades de escaneo. hojas sueltas, escrituras, tickets, a mí si me va bien, a veces si la hoja está un poco deteriorada se puede atascar, pero creo que es la mejor relación calidad-precio que conozco.
Data di pubblicazione: 2019-05-29
Rated 1 di 5 di da SE ATASCA CONSTANTEMENTE No lo recomiendo para una oficina por más pequeña que sea. Se atasca constantemente y rompe la hoja por la derecha. Según el fabricante no acepta hojas de 90gr, pero el mismo problema lo tiene para los diferentes gramajes
Data di pubblicazione: 2019-05-01
Rated 5 di 5 di da Klein und Kompakt Für die meinsten Einsatzgebiete vollkommen Einsatzfähig
Data di pubblicazione: 2018-10-22
Rated 2 di 5 di da Don't bother if you want to scan any quantity I bought this because I didn't want to have to use my computer to scan and the Brother website said that it would scan to Dropbox - it doesn't. After I set it all up and couldn't get it to work, I contacted support and all their support people could do was to tell me to return it because it doesn't scan to web at all. They then updated the website, so at least it is right now. In the hope that I had not wasted my time in setting it up, I thought I would try scanning to USB - I wish I hadn't bothered - it took 1 min 33 seconds to scan and save (mostly save) a 1 sheet, 2 sided document. On the plus side, the scans were of decent quality, but I just can't waste my life waiting for them to save! It is going back.
Data di pubblicazione: 2018-06-15
Rated 4 di 5 di da Good simple compact desktop scanner This is a great basic scanner for everyday use. It can scan documents double sided very quickly. Obviously this can only be used on sheets of paper, and books etc are not compatible. We have just started a new business and the scanner has saved us a lot of time when it comes to uploading contracts etc.
Data di pubblicazione: 2017-10-23
Rated 1 di 5 di da Scanner purchase Whilst the scanner was just what I was looking for I am very disappointed the software provided did not allow me to set up the scanner and therefore I am not currently using it until I can find a solution.
Data di pubblicazione: 2017-07-31
Rated 4 di 5 di da Fast set-up and scanning with difficulties with sheet-fed Easy set up to use in wifi. Fast scanning even with highest resolution of 600dpi. Main point is that the scanner pies not pull in paper straight. With highest resolution paper is pulled through slower - I made a diy construction that ensures a4 paper is fed straight even when using lower dpi. Now it's fine - but brother should be able to come up with a solution on its own. Will be even more important if more pages shall be scanned.
Data di pubblicazione: 2016-09-14
Rated 5 di 5 di da Great Device I bought this to scan documents for home and work. It is small for storage and very easy to set up. For the cost the speed of the device is very good and the PDF scan quality has been more than acceptable at full speed. There have been one or two paper jams but hat probably had more to do with how I stacked the device rather than an major issue. For the price I think you would struggle to find a faster scanner. It ticks a lot of boxes.
Data di pubblicazione: 2016-02-21
